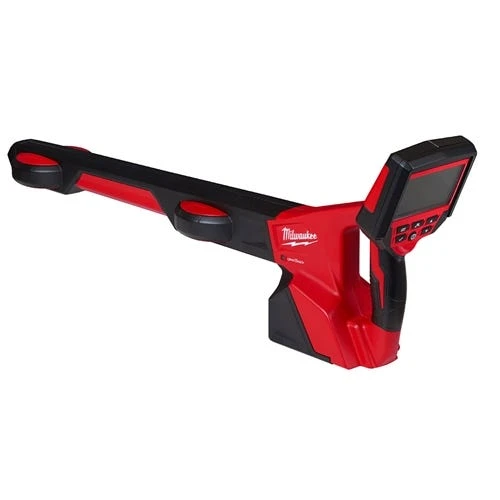

Milwaukee Tools Milwaukee M12 Pipeline Locator Kit 2580-21

Milwaukee

M12 Pipeline Locator Kit 2580-21

M12 Pipeline Locator provides the most intuitive plumbing locating experience; simplifying the process of pinpointing sewer camera sondes and tracing underground sewer lines. A directional arrow appears on screen upon startup; immediately pointing in the direction of the sonde and eliminating the need to guess and check which direction to start. Once in range; a sonde icon appears on screen; confirming the exact location of the sonde. Dual 3D antennas eliminate false peaks and increase both sensitivity and precision; making it easier to locate than ever before.

FEATURES:

• Directional Icons Eliminate Guess & Check.
• 360 Degree Guidance Arrow provides Fast; Accurate Guidance Upon Start Up.
• Line Trace Mode: Compass Icon Follows Energized Line.
• Onboard Controls: Quickly Switch between locating modes.
• Daylight Readable Screen for Optimal Outdoor Viewing.
• One-Key Tracking; Security; & Inventory Management.
• Read Signals Clearly on 4.3” LCD Display.

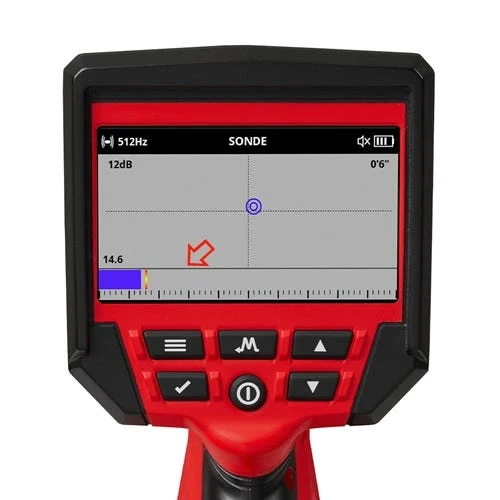

• On-Screen Sonde Icon Confirms Sonde’s Exact Location.
• Two 3D Antennas for precise locating.
• Calibration Test Monitors Tool’s Accuracy.
• IP65 Rated: Survives Harsh Jobsite Conditions.

SPECIFICATIONS:

Voltage	12V
Battery Type	M12
Display Type	4.3 Color LCD Display
Sonde Frequencies	512 HZ; 640 Hz; 33 KHz
Line Trace Frequency	33kHz; 83kHz
Power Frequency	50Hz; 60Hz
Radio Frequency	10kHz – 22.7kHz Bandwidth

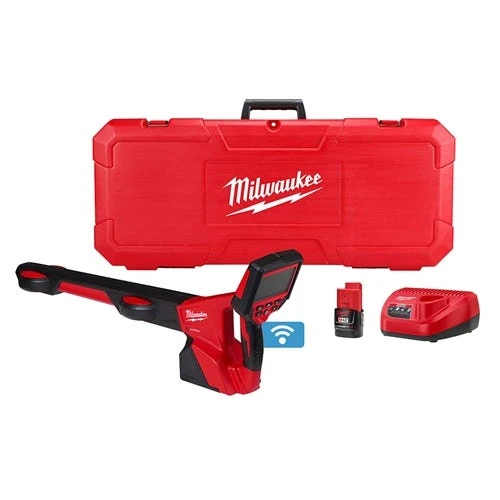

INCLUDES:

• (1) M12 Pipeline Locator Kit (2580-21)
• (1) M12 REDLITHIUM CP1.5 Battery Pack (48-11-2401)
• (1) M12 Lithium-ion Battery Charger (48-59-2401)

“
