Honda

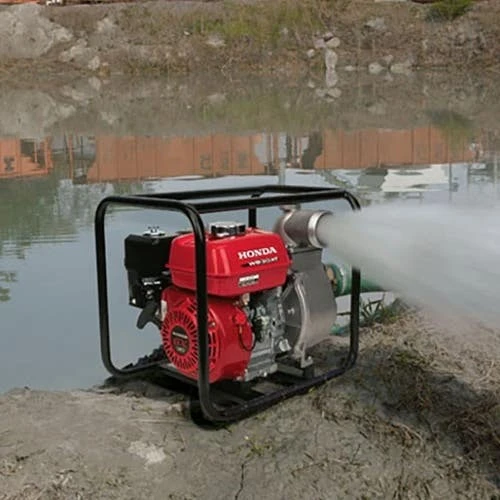

WB30 3 General Purpose Water Pump WB30XT3
FEATURES:
- 290 gal./min. capacity.
- Silicon carbide mechanical seal.
- Cast iron volute and impeller.
- Easy starting Honda OHV commercial engine.
- 4 vane high efficiency impeller.
- Cast iron volute.
- Heavy duty full frame protection.
SPECIFICATIONS:
| Engine | GX160 |
|---|---|
| Displacement | 163cc |
| Bore and stroke | 2.7″ x 1.8″ |
| Compression Ratio | 9.0:1 |
| Oil Alert | Std |
| Pump type | Centrifugal; Self-priming |
| Volute | Rigid Mounted Cast Iron |
| Impeller | 4 Vane Cast Iron |
| Mechanical Seal (Pump case / impeller) | Silicon Carbide/Silicon Carbide |
| Priming time | 150 sec @16.4 ft. |
| Drive system | Direct |
| Discharge capacity | 290 gal/min |
| Suction port diameter | 3″ NPT |
| Discharge port diameter | 3″ NPT |
| Total head lift | 85 ft. |
| Suction head lift | 25 ft. |
| Maximum pressure | 37 psi |
| Solids handling | N/A |
| Dimensions (LxWxH) | 20.1″x 15.2″ x 17.9″ |
| Dry weight | 57 lb. |
| Fuel Capacity | 0.82 gal |
| Run Time @ Max Discharge | 1.9 hr |
“
