Honda

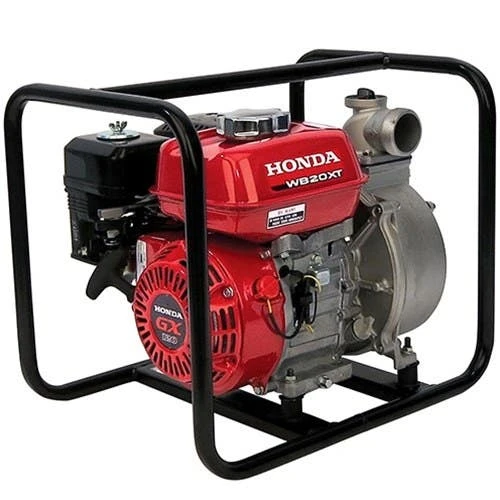

2 General Water Pump GX120 164 gpm Dewatering WB20XT4A
FEATURES:
- General purpose; centrifugal 2″ pump.
- Easy starting Honda OHV commercial engine.
- 164 gal./min. capacity.
- Durable silicon carbide mechanical seal.
- Cast iron volute and impeller.
SPECIFICATIONS:
| Engine | GX120 |
| Displacement | 118cc |
| Bore and stroke | 2.4″ x 1.7″ |
| Compression Ratio | 8.5:1 |
| Oil Alert | Std |
| Pump type | Centrifugal; Self-priming |
| Volute | Rigid Mounted Cast Iron |
| Impeller | 4 Vane Cast Iron |
| Dimensions (L x W x H) | 19.3″ x 14.4″ x 16.5″ |
| Mechanical Seal (Pump case / impeller) | Silicon Carbide/Silicon Carbide |
| Dry Weight | 44 lb. |
| Drive system | Direct |
| Discharge capacity | 164 gal/min |
| Suction port diameter | 2″ NPT |
| Discharge port diameter | 2″ NPT |
| Total head lift | 105 ft |
| Suction head lift | 25 ft |
| Maximum pressure | 45 psi |
| Solids handling | N/A |
| Fuel Capacity | 0.53 gal |
| Run Time @ Max Discharge | 1.7 hr |
| Residential Warranty | 3 Years |
| Commercial Warranty | 3 Years |
“
